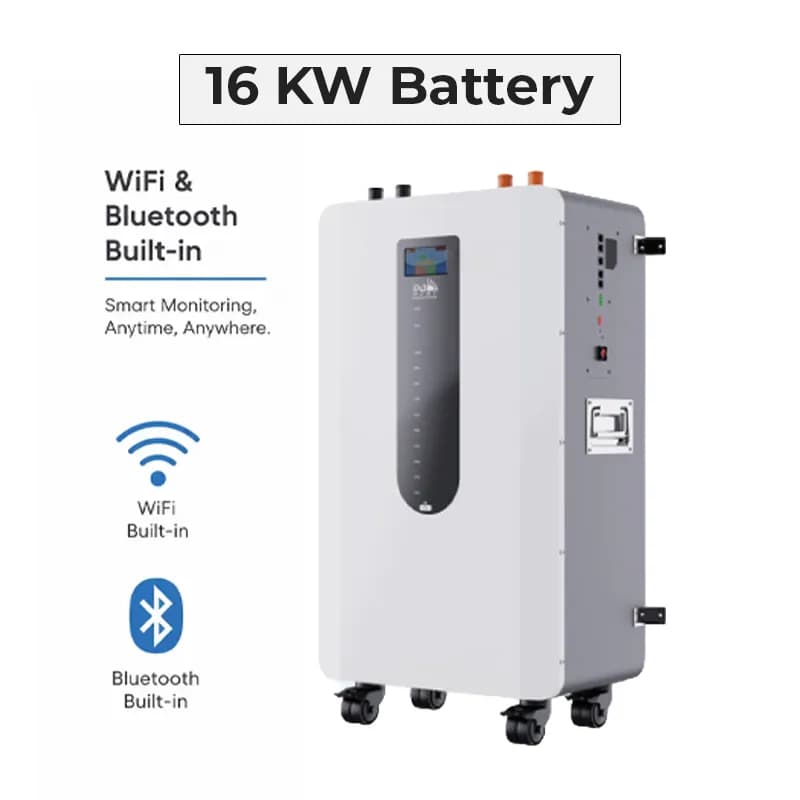

| BATTERY MODEL | 51.2V330AH |
| Usable Energy (kWh) | 16.89KWH |
| Cell Type | LFP (LiFePO4) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage Range (V) | 40-58.4 |
| Nominal Charge Current(A) | 150A |
| Nominal Discharge current(A | 150 |
| Max. Charge Current(A) | 200 |
| Max. Discharge current(A) | 300 |
| Communication | CAN, RS485,Bluetooth,WIFI |
| Dimensions (mm) | 830 × 440 × 277(Including casters) |
| Weight (kg) | 122 |
| operation temperature | Charge: 0 -45℃ / Discharge: -10 -60℃ |
| Relative Humidity | 0-85% |
| Max. Operating Altitude (m) | 2000 |
| Mounting Method | Wall Mounted / Grounded |
| Standard and Certification | MSDS IEC ROHS CE UN38.3 |
| Cycle | 25℃ 6000 Cycle （0.5C charge, 0.5C discharge) |
